Nexus Analyzer
ACCESSING NEXUS ANALYZER

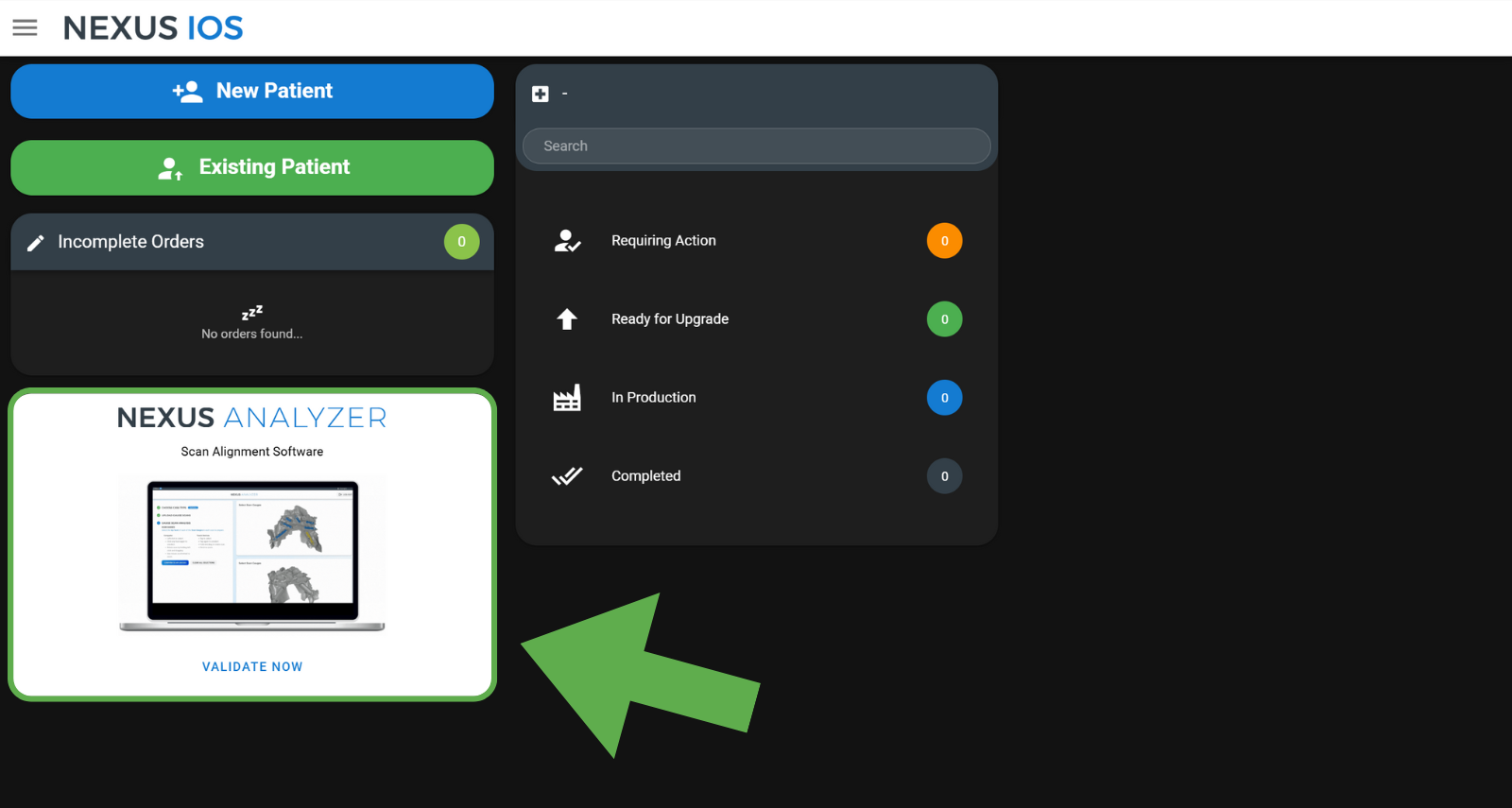

Access Nexus Analyzer by clicking this link or by following the prompt when logging onto the Nexus Portal
WALKTHROUGH VIDEOS
Compare each set of Scan Gauge Scans using the Nexus Analyzer available via the Nexus Portal.
Successful Scan Example
Ignore Narrow Scan Bodies during alignment process if used.
Successful scans can continue to order.
Consider Rescan Example
It is recommended to scan again following advice in pop-up window to achieve a Success result.
Cases that continue with a Consider Rescan may require a rescan during Try-In stage.

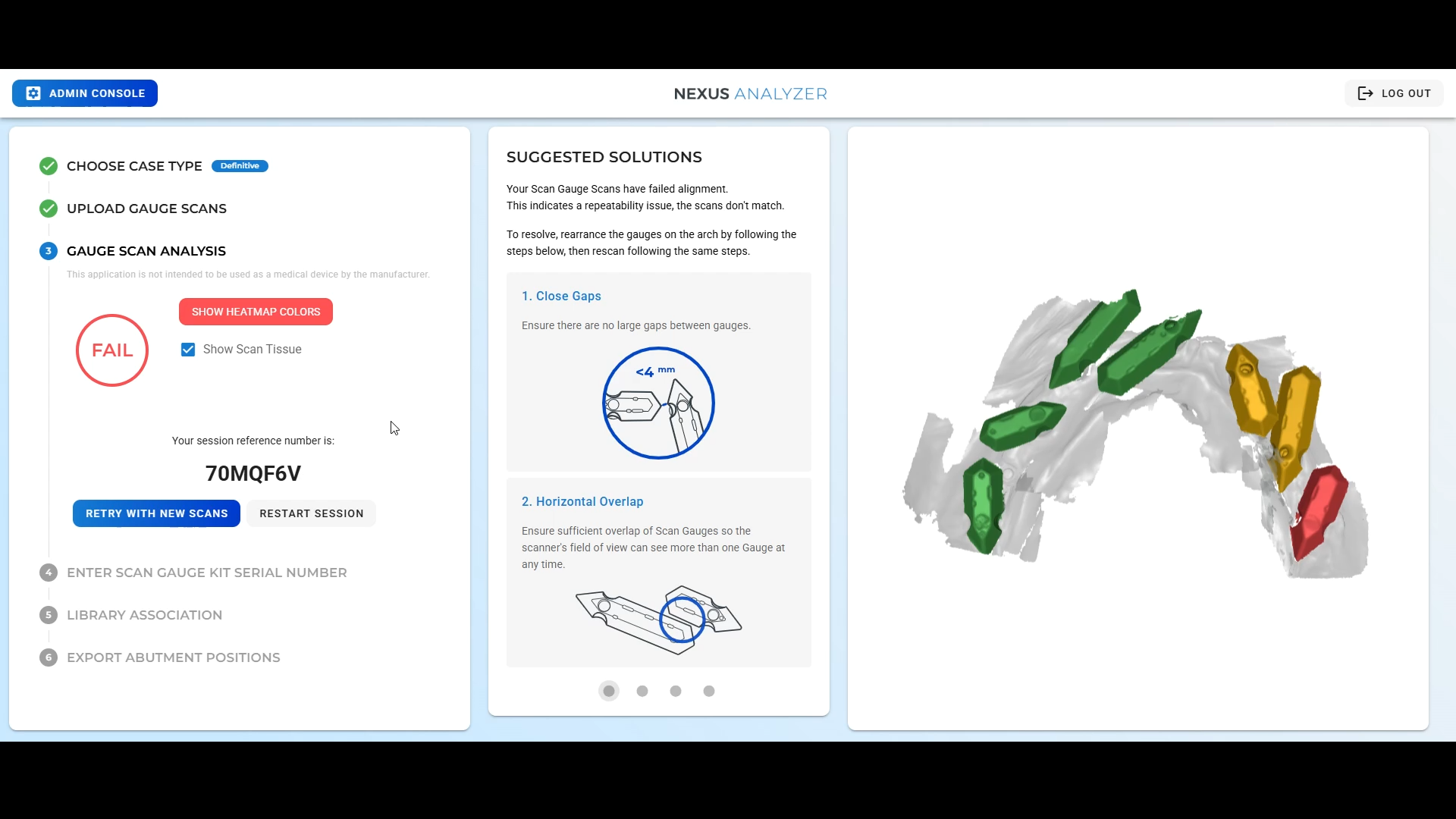

Failed Scan Example
Failed scans generally require significant adjustment of Scan Gauge placement and scanning technique.
Follow pop-up guidance and rules and scan left to right, and right to left scans again.
