Scan Gauge Placement
Correct arrangement of Scan Gauges is critical to having a successful scan.
PLACING GAUGES
Close Proximity
Close proximity is the most important rule to follow when placing gauges.
Under 4mm is advised where possible.

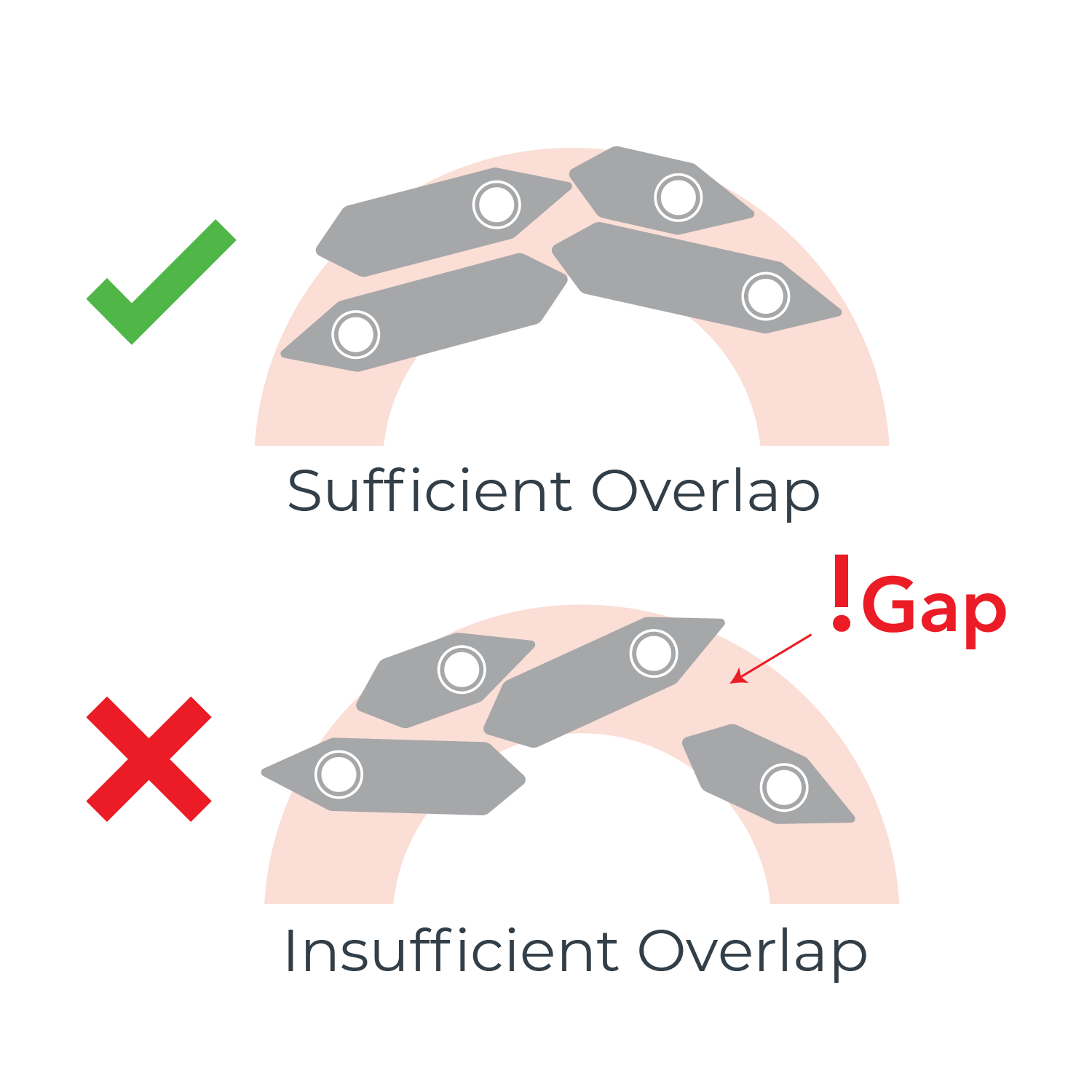

Sufficient Overlap
Aim to have the sides of Scan Gauges overlap with the adjacent gauge.
Having the next gauge in the scanner field of view before moving to the next is necessary.
Ensure Gauge Is Seated
If the gauge is being obstructed by hard-tissue. Use the taller collar height.
Note: The greater the gap between gauge and tissue, the harder to capture accurate scans.
No Rotation
Ensure that the Scan Gauge and the MUA are completely seated and torqued. Gauges cannot move between the Left to Right and Right to Left scans.

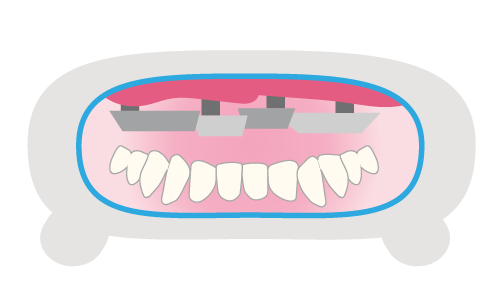

Use Retractors
To attain correct scanning data, there must not be any interference with the scanner. This means no lip, tongue or cheek. Utilize retractors every scan to minimize interference.
HOW TO USE
SCAN GAUGES
Follow the video below to see how Scan Gauges should be placed and scanned for the best results.
