Scan Gauge Scanning Tips & Tricks

SCANNING TIPS

Follow the scanning preparation and guidance to get the most accurate outcomes.

Scan In One Direction

When scanning, move in one direction across the arch. Do not move the scanner back onto previously scanned areas - This causes data corruption.

Zig-Zag to Capture All Information

While moving in one direction across the arch, zig-zag the scanner head to ensure all gauges are captured.

Tilt Scanner Head

In order to capture all of the 7 facets, gently tilt the scanner head - capturing underlying soft tissue can help the scanning process.

CORRECT PLACEMENT & SCANNING EXAMPLES

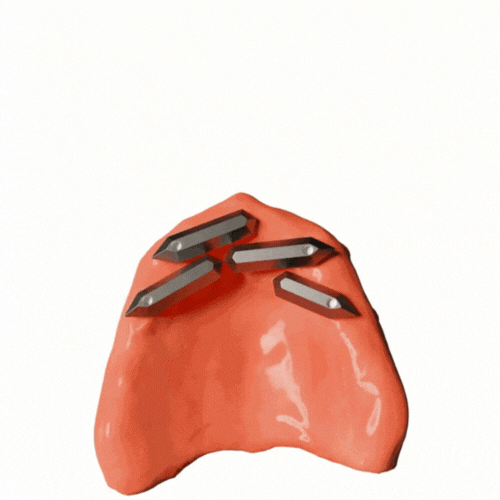

4 Implants

5 Implants

6 Implants

INCORRECT PLACEMENT & SCANNING EXAMPLES

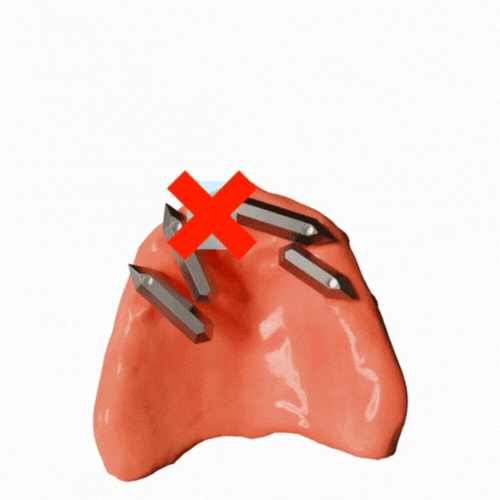

4 Implants

5 Implants

6 Implants
